A complete off-grid solar package for large homes, guesthouses, clinics, farms, offices and growing businesses, combining 22kW inverter capacity, 21.6kWp of solar panels, 220 / 230 / 240 VAC output to keep priority loads running when grid power is unavailable or unreliable.
Wholesale pricing is available for bulk orders and distributors.
Final lead time, shipping route, and freight cost are confirmed according to order quantity and destination.
Read Shipping PolicyThis configured system includes 5 component lines built around 42 total units of linked core products.
| Rated Power | 22 kW |
| Output Voltage | 220 / 230 / 240 VAC |
| PV Array Power | 21.6 kWp |
| PV Module Quantity | 36 |
| Energy | 36 kWh |
| Battery Voltage | 51.2 V |
| Battery Capacity | 330 Ah |

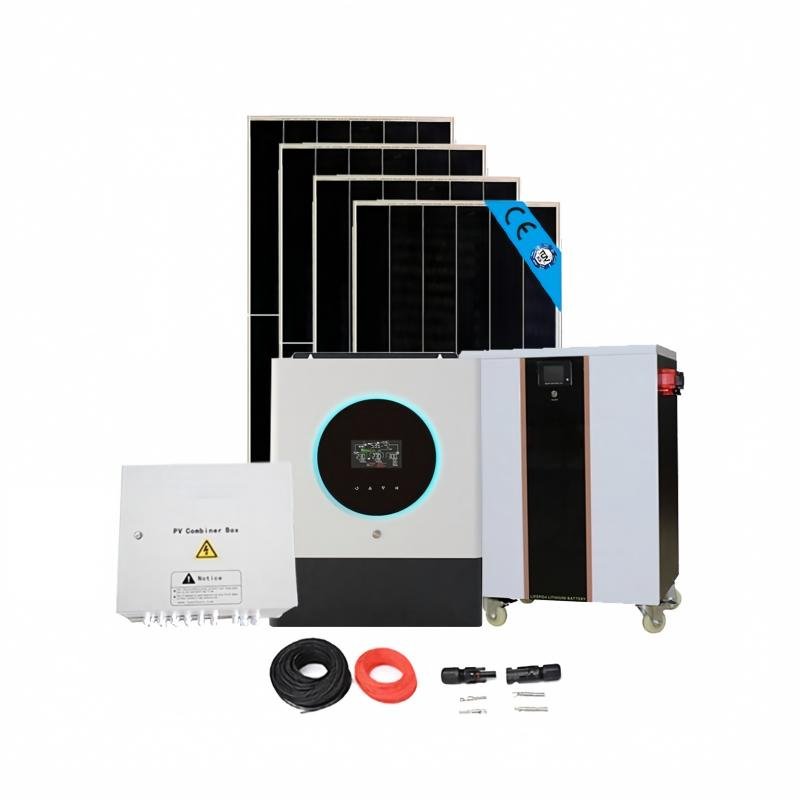

Review the components and quantities included in this complete solar system.

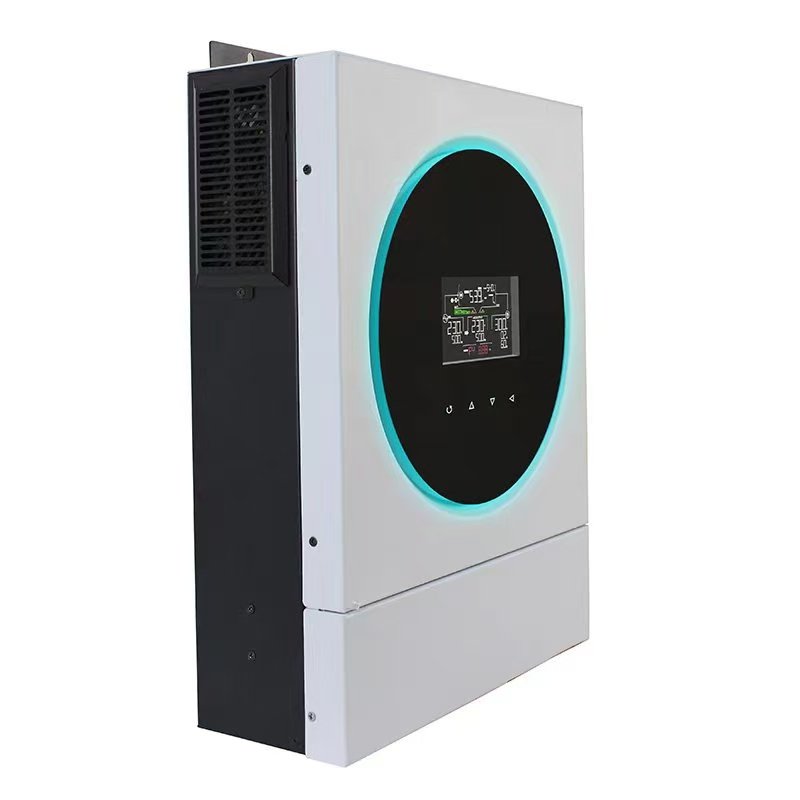

| Included quantity | 2 units |
|---|---|
| Model | SC-MAX II 11kW |
| Rated Power | 11 kW |
| Rated Battery Input Voltage | 48 VDC |
| Output Voltage | 220 / 230 / 240 VAC |
| MPPT Voltage Range | 90–500 VDC |
| Maximum Charging Current | 120 A |
| Charging Efficiency | 99 % |
| Product Size | 147.4 × 432.5 × 553.6 mm |
| Communication | Wi-Fi |
| Display | Touchscreen |
| AC Charger | Built-in |
| Warranty | 2 years |

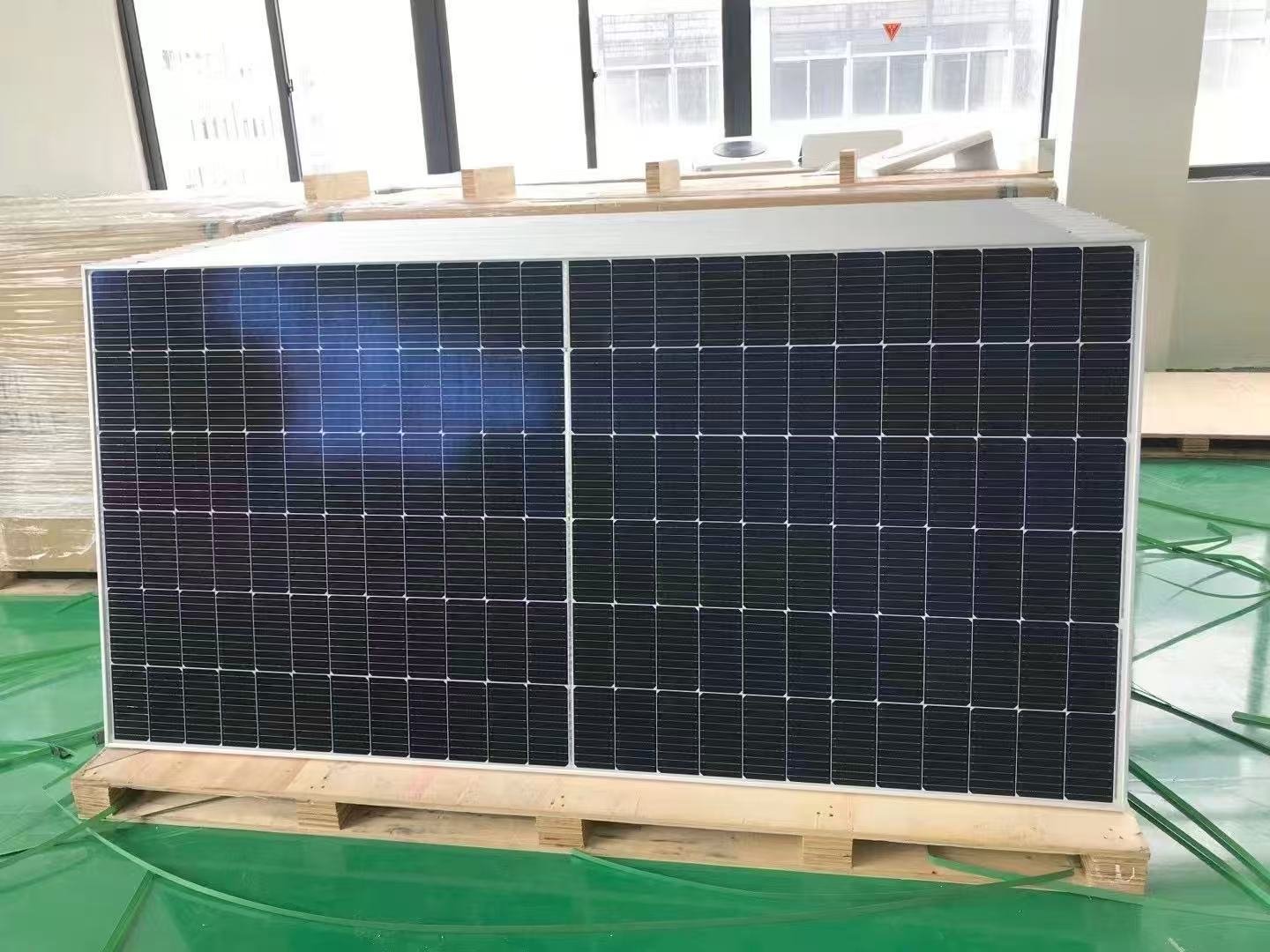

| Included quantity | 36 pcs |
|---|---|
| Max Power | 600 W |
| Solar Cell | Monocrystalline |
| Vmp | 43.18 V |
| Voc | 51.41 V |
| Imp | 15.3 A |
| Product Dimension | 2279 × 1134 × 30 mm |
| Busbars | 5 |
| Junction Box Protection | IP65 |
| Connector | MC4 |
| Lifespan | 25 years |

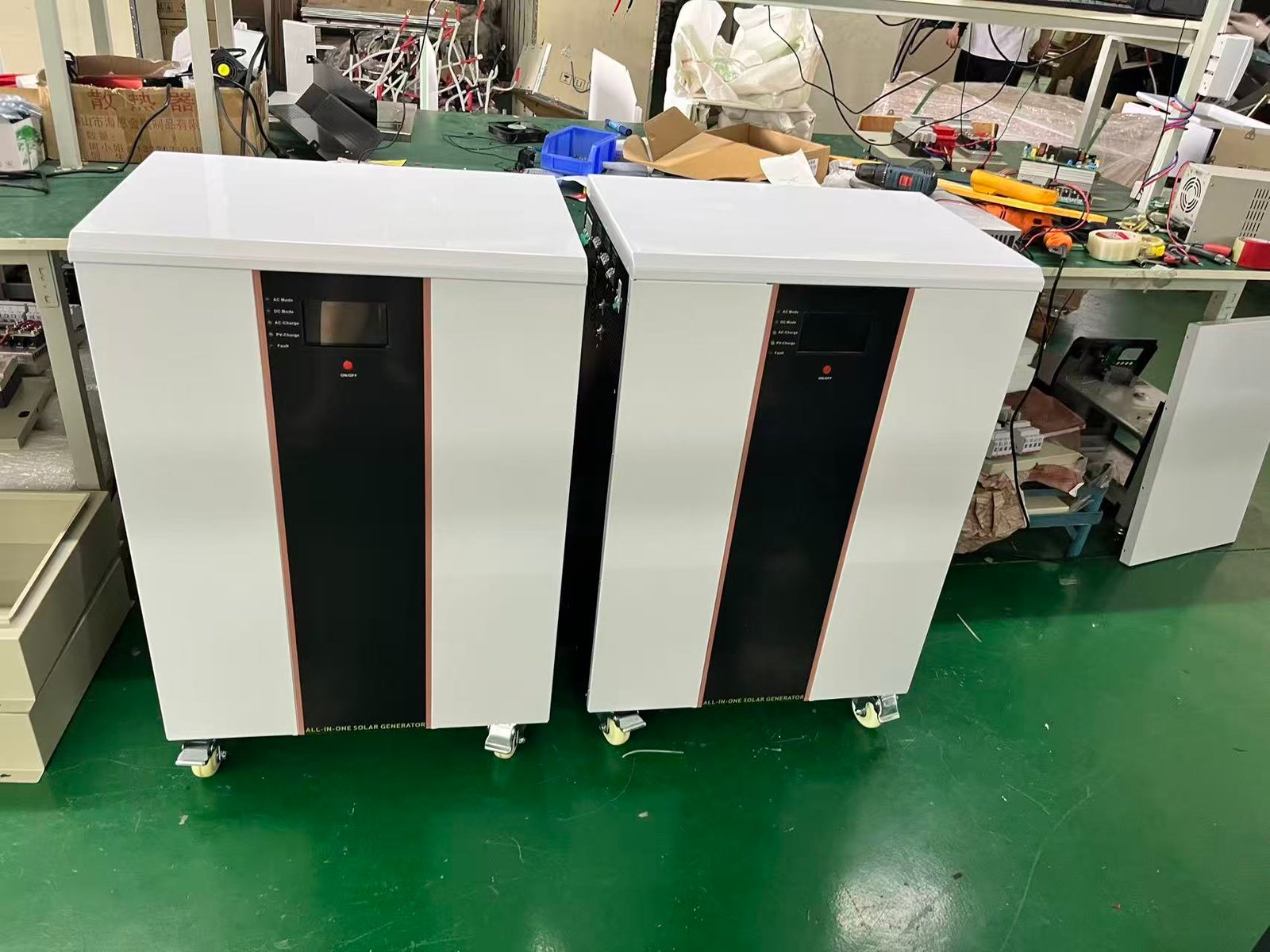

| Included quantity | 2 set |
|---|---|
| Battery Type | LiFePO4 |
| Battery Voltage | 51.2 V |
| Capacity | 330 Ah |
| Battery voltage range | 43.2–58.4 V |
| Cycle Life | >6000 cycles |
| Lifespan | 8–10 years |
| Included quantity | 1 set |
|---|---|
| Application | Slope rooftop or flat rooftop |
| Material | Anodized aluminum and stainless steel |
| Tilt | Adjustable |
| Rated Wind Load | 55 m/s |
| Rated Snow Load | 1.5 kN/m² |
| Included quantity | 1 set |
|---|---|
| Cable Size | 4 mm² |
| PV Cable Length | 200 m |
| Battery Cables | 4 × 16 mm² × 1 m |
| Connector | MC4 |
| Ground Cable | Included |
| DC Circuit Breakers | 4 × 100 A |
22kW Solar System for Off Grid combines solar generation, battery storage and the main system components in one coordinated package. It can keep essential equipment available through outages and reduce routine dependence on diesel generators.
A guesthouse can keep reception, room lighting, WiFi, refrigeration, water supply and selected comfort loads available when grid power fails.
Guest rooms, reception, lighting, WiFi and security; Refrigerators, freezers, office equipment and POS systems
Choose the system around the equipment you want to keep running at the same time during an outage.
Water pumps, selected air conditioning and other managed motor loads after surge checks
These loads can be included after we check their running power, starting power and normal operating schedule.
Several large air conditioners, electric kitchen or laundry heating, large pumps or workshop machinery
If you want to run these loads together, tell us before quotation so the inverter, battery and solar array can be sized for them.
Send us the appliance and motor nameplates with your load list. We will check how much equipment can run together and allow for motor or compressor starting power.
Send the site voltage and phase, appliance or equipment list, daily operating hours, motor starting information and required backup time. We will confirm whether this package fits or recommend a more suitable configuration.
The system can be sized for essential shop or clinic circuits, such as lighting, refrigeration and point-of-sale equipment.
Solar generation and battery storage can support priority loads at remote sites. Size the system for pump starting loads and refrigeration hours.
Battery backup can keep priority guest services running, such as reception, Wi-Fi and lighting. Size larger loads separately.
Battery backup can support the equipment that keeps work moving, such as computers, network equipment and payment terminals.
The panels, inverter and battery are supplied as a complete package, so installers can assess the configuration together before ordering.
Download files will appear here once they are added.
It can be configured for guest rooms, reception, lighting, wifi and security; refrigerators, freezers, office equipment and pos systems; water pumps, selected air conditioning and other managed motor loads after surge checks. Final appliance quantity depends on simultaneous load and motor starting requirements.
Please provide the site voltage and phase, load list, running hours, pump or compressor starting data, target backup time and available panel installation area.
