A complete off-grid solar package for large homes, guesthouses, clinics, farms, offices and growing businesses, combining 10kW inverter capacity, 600 W solar modules, 17 kWh of battery storage, 110 / 220 VAC output to keep priority loads running when grid power is unavailable or unreliable.
Wholesale pricing is available for bulk orders and distributors.
Final lead time, shipping route, and freight cost are confirmed according to order quantity and destination.
Read Shipping PolicyThis configured system includes 6 component lines built around 14 total units of linked core products.
| Rated Power | 10 kW |
| Output Voltage | 110 / 220 VAC |
| PV Module Quantity | 9 |
| Energy | 17 kWh |
| Battery Voltage | 51.2 V |
| Battery Capacity | 330 Ah |
Review the components and quantities included in this complete solar system.
| Included quantity | 1 unit |
|---|---|
| Rated Power | 10 kW |
| Rated Battery Input Voltage | 48 VDC |
| Output Voltage | 110 / 220 VAC |
| MPPT Voltage Range | 70–450 VDC |
| Maximum Charging Current | 120 A |
| Charging Efficiency | 99 % |
| Product Size | 520 × 420 × 222 mm |
| Communication | Wi-Fi |
| Display | Touchscreen |
| AC Charger | Built-in |
| Warranty | 2 years |
| Included quantity | 9 pcs |
|---|---|
| Max Power | 600 W |
| Solar Cell | Monocrystalline |
| Vmp | 43.18 V |
| Voc | 51.41 V |
| Imp | 15.3 A |
| Product Dimension | 2279 × 1134 × 30 mm |
| Busbars | 5 |
| Junction Box Protection | IP65 |
| Connector | MC4 |
| Lifespan | 25 years |

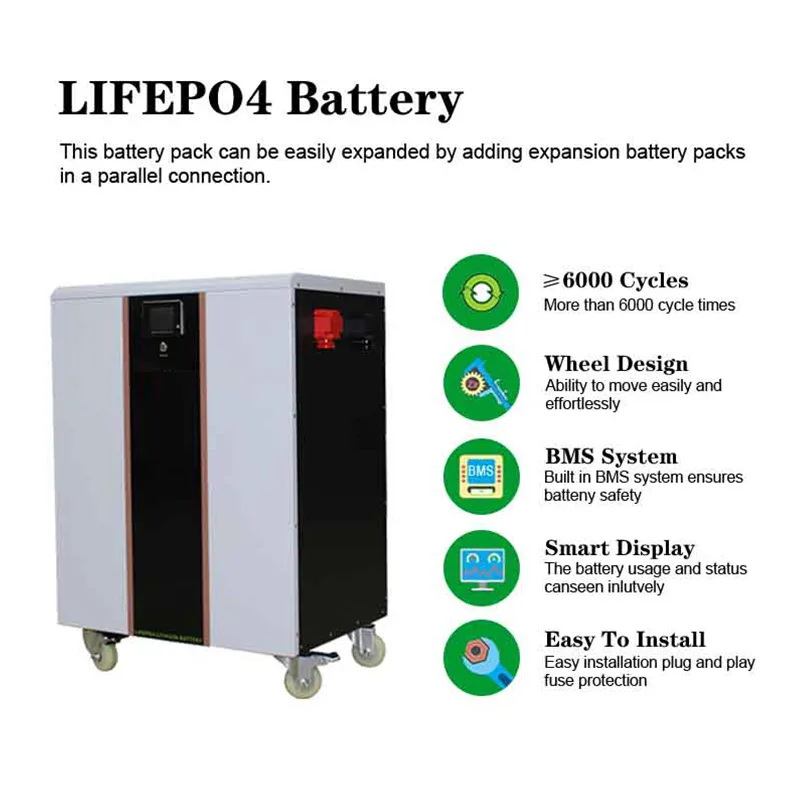

| Included quantity | 1 set |
|---|---|
| Battery Type | LiFePO4 |
| Battery Voltage | 51.2 V |
| Capacity | 330 Ah |
| Battery voltage range | 43.2–58.4 V |
| Cycle Life | >6000 cycles |
| Lifespan | 8–10 years |
| Included quantity | 1 set |
|---|---|
| Application | Slope rooftop or flat rooftop |
| Material | Anodized aluminum and stainless steel |
| Tilt | Adjustable |
| Rated Wind Load | 55 m/s |
| Rated Snow Load | 1.5 kN/m² |
| Included quantity | 1 set |
|---|---|
| Cable Size | 4 mm² |
| PV Cable Length | 100 m |
| Battery Cables | 14 × 16 mm² × 35 cm + 4 × 16 mm² × 1 m |

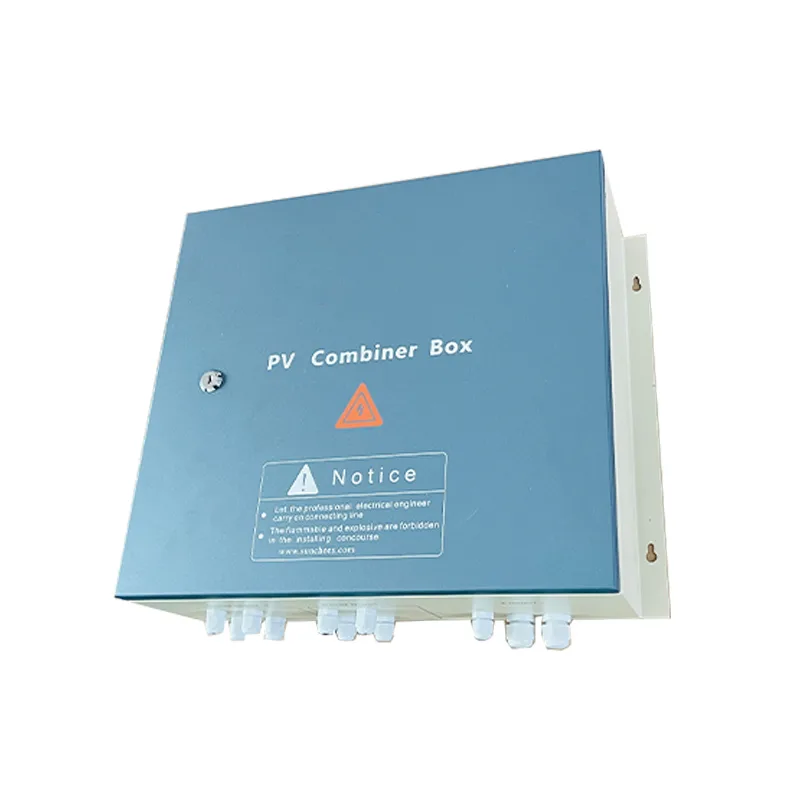

| Included quantity | 1 unit |
|---|---|
| Model | PC4-48V |
| Application | PV array combining and protection |
| Surge Protection | Yes |

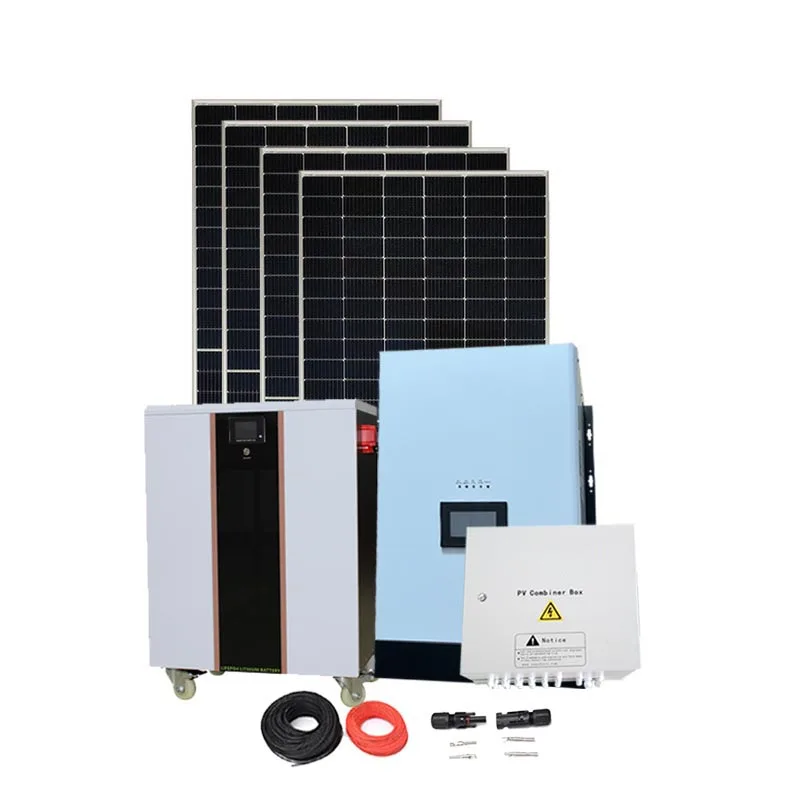

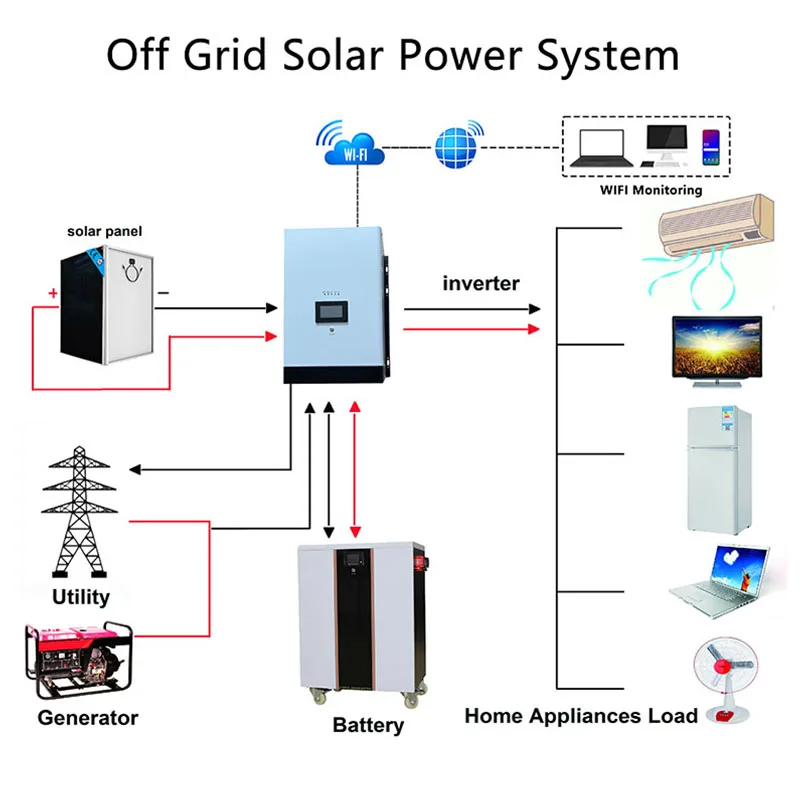

10kw 48v solar power system combines solar generation, battery storage and the main system components in one coordinated package. It can keep essential equipment available through outages and reduce routine dependence on diesel generators.
A villa or small office can prioritise refrigeration, lighting, communications, security and water supply during an outage.
Lighting, fans, TVs, WiFi and computers; Refrigerators, freezers, CCTV and POS equipment
Choose the system around the equipment you want to keep running at the same time during an outage.
A water pump or selected air-conditioning circuits after starting power is confirmed
These loads can be included after we check their running power, starting power and normal operating schedule.
Electric water heating, electric cooking, several air conditioners or large workshop tools
If you want to run these loads together, tell us before quotation so the inverter, battery and solar array can be sized for them.
Send us the appliance and motor nameplates with your load list. We will check how much equipment can run together and allow for motor or compressor starting power.
Tell us which loads must continue during an outage and how many hours of backup you need. The battery bank can then be confirmed as part of the final system quotation.
Send the site voltage and phase, appliance or equipment list, daily operating hours, motor starting information and required backup time. We will confirm whether this package fits or recommend a more suitable configuration.
The system can be sized for essential shop or clinic circuits, such as lighting, refrigeration and point-of-sale equipment.
Solar panels and battery storage can support essential household loads such as lighting, refrigeration and Wi-Fi after sunset or during outages.
The panels, inverter and battery are supplied as a complete package, so installers can assess the configuration together before ordering.
Download files will appear here once they are added.
It can be configured for lighting, fans, tvs, wifi and computers; refrigerators, freezers, cctv and pos equipment; a water pump or selected air-conditioning circuits after starting power is confirmed. Final appliance quantity depends on simultaneous load and motor starting requirements.
Backup time depends on the selected battery capacity, connected loads, operating hours, reserve settings and conversion losses.
Please provide the site voltage and phase, load list, running hours, pump or compressor starting data, target backup time and available panel installation area.
