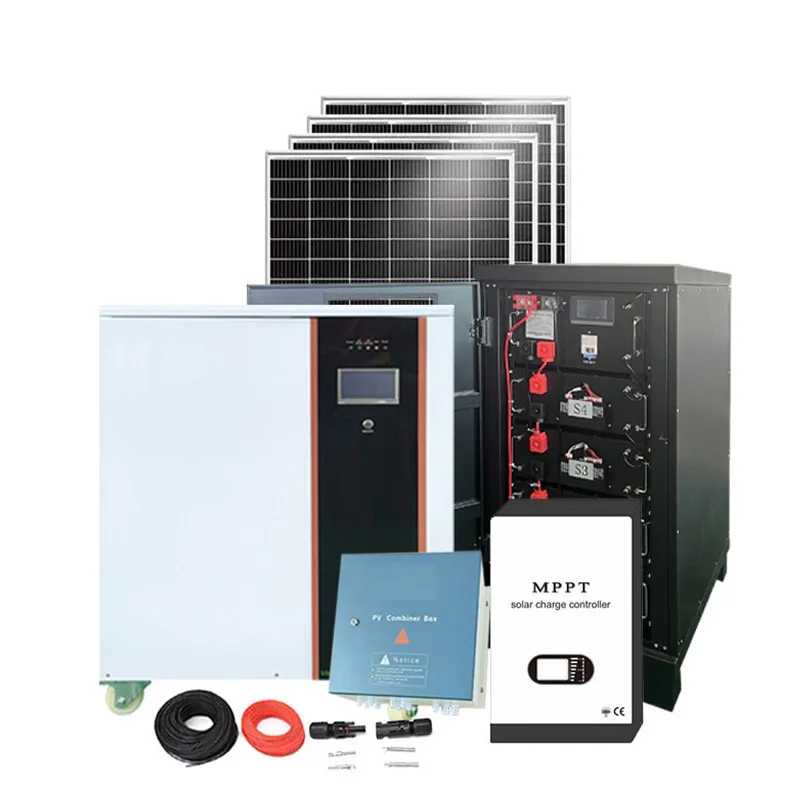

A complete off-grid solar package for large homes, guesthouses, clinics, farms, offices and growing businesses, combining 20kW inverter capacity, 14.4kWp of solar panels, 110 / 220 VAC output to keep priority loads running when grid power is unavailable or unreliable.
Wholesale pricing is available for bulk orders and distributors.
Final lead time, shipping route, and freight cost are confirmed according to order quantity and destination.
Read Shipping PolicyThis configured system includes 7 component lines built around 30 total units of linked core products.
| Rated Power | 20 kW |
| Output Voltage | 110 / 220 VAC |
| PV Array Power | 14.4 kWp |
| PV Module Quantity | 24 |
| Energy | 40.8 kWh |
| Battery Voltage | 192 V |
| Battery Capacity | 200 Ah |
Review the components and quantities included in this complete solar system.
| Included quantity | 1 unit |
|---|---|
| Model | TSC20KW/192V |
| Rated Power | 20 kW |
| Phase Type | Single Phase |
| Rated Battery Input Voltage | 192 VDC |
| Output Voltage | 110 / 220 VAC |
| PV Input Voltage Range | 500–800 VDC |
| Efficiency | 90–95 % |
| AC Charger | Built-in |
| Electrical Protection | Short circuit, overload, overvoltage and undervoltage |
| Warranty | 2 years |
| Included quantity | 24 pcs |
|---|---|
| Max Power | 600 W |
| Solar Cell | Monocrystalline |
| Vmp | 43.18 V |
| Voc | 51.41 V |
| Imp | 15.3 A |
| Product Dimension | 2279 × 1134 × 30 mm |
| Busbars | 5 |
| Junction Box Protection | IP65 |
| Connector | MC4 |
| Lifespan | 25 years |
| Included quantity | 1 set |
|---|---|
| Battery Type | LiFePO4 |
| Battery Voltage | 192 V |
| Capacity | 200 Ah |
| Maximum Charging Current | 150 A |
| Product Size | 1350 × 1010 × 1780 mm |
| Gross Weight | 700 kg |
| BMS | One per module |
| Cycle Life | >6000 cycles |
| Lifespan | 8–10 years |
| Included quantity | 1 set |
|---|---|
| Application | Slope rooftop or flat rooftop |
| Material | Anodized aluminum and stainless steel |
| Tilt | Adjustable |
| Rated Wind Load | 55 m/s |
| Rated Snow Load | 1.5 kN/m² |
| Included quantity | 1 set |
|---|---|
| Cable Size | 6 mm² |
| PV Cable Length | 200 m |
| Battery Cables | 2 × 25 mm² × 1 m |
| Connector | MC4 |
| Included quantity | 1 unit |
|---|---|
| Model | PC4-192V |
| Application | PV array combining and protection |
| Surge Protection | Yes |
| Warranty | 2 years |
| Included quantity | 1 unit |
|---|---|
| Model | 192V / 100A |
| Rated Voltage | 192 V |
| Maximum Charging Current | 100 A |
| Charging Efficiency | 90–95 % |
| Temperature Compensation | Yes |
| Warranty | 2 years |
20kW Off-Grid Solar System combines solar generation, battery storage and the main system components in one coordinated package. It can keep essential equipment available through outages and reduce routine dependence on diesel generators.
A guesthouse can keep reception, room lighting, WiFi, refrigeration, water supply and selected comfort loads available when grid power fails.
Guest rooms, reception, lighting, WiFi and security; Refrigerators, freezers, office equipment and POS systems
Choose the system around the equipment you want to keep running at the same time during an outage.
Water pumps, selected air conditioning and other managed motor loads after surge checks
These loads can be included after we check their running power, starting power and normal operating schedule.
Several large air conditioners, electric kitchen or laundry heating, large pumps or workshop machinery
If you want to run these loads together, tell us before quotation so the inverter, battery and solar array can be sized for them.
Send us the appliance and motor nameplates with your load list. We will check how much equipment can run together and allow for motor or compressor starting power.
Tell us which loads must continue during an outage and how many hours of backup you need. The battery bank can then be confirmed as part of the final system quotation.
Send the site voltage and phase, appliance or equipment list, daily operating hours, motor starting information and required backup time. We will confirm whether this package fits or recommend a more suitable configuration.
The system can be sized for essential shop or clinic circuits, such as lighting, refrigeration and point-of-sale equipment.
Battery backup can keep priority guest services running, such as reception, Wi-Fi and lighting. Size larger loads separately.
Battery backup can support the equipment that keeps work moving, such as computers, network equipment and payment terminals.
The panels, inverter and battery are supplied as a complete package, so installers can assess the configuration together before ordering.
Download files will appear here once they are added.
Backup time depends on the selected battery capacity, connected loads, operating hours, reserve settings and conversion losses.
Please provide the site voltage and phase, load list, running hours, pump or compressor starting data, target backup time and available panel installation area.
