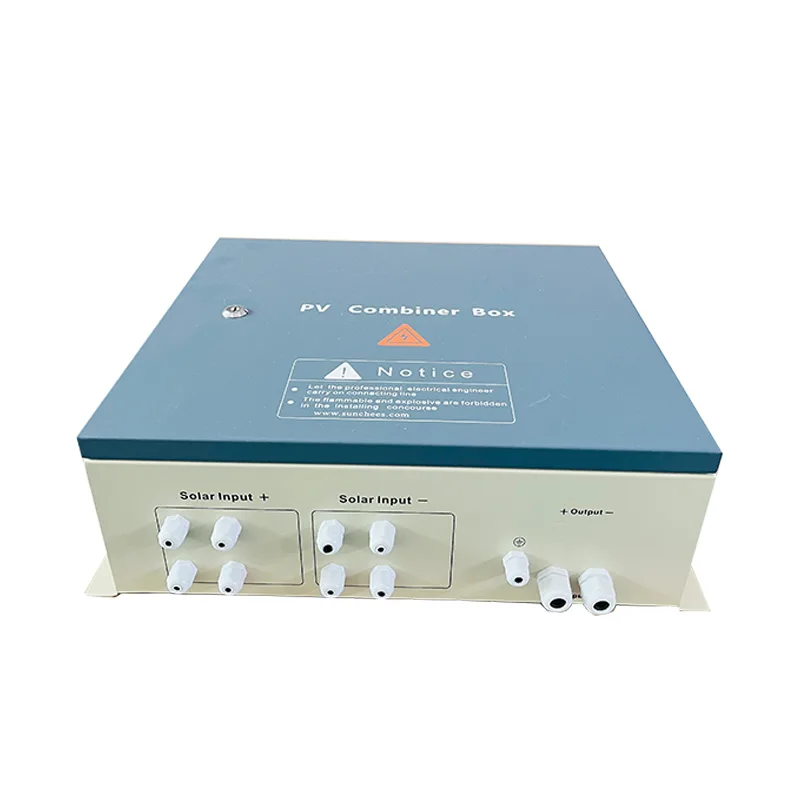

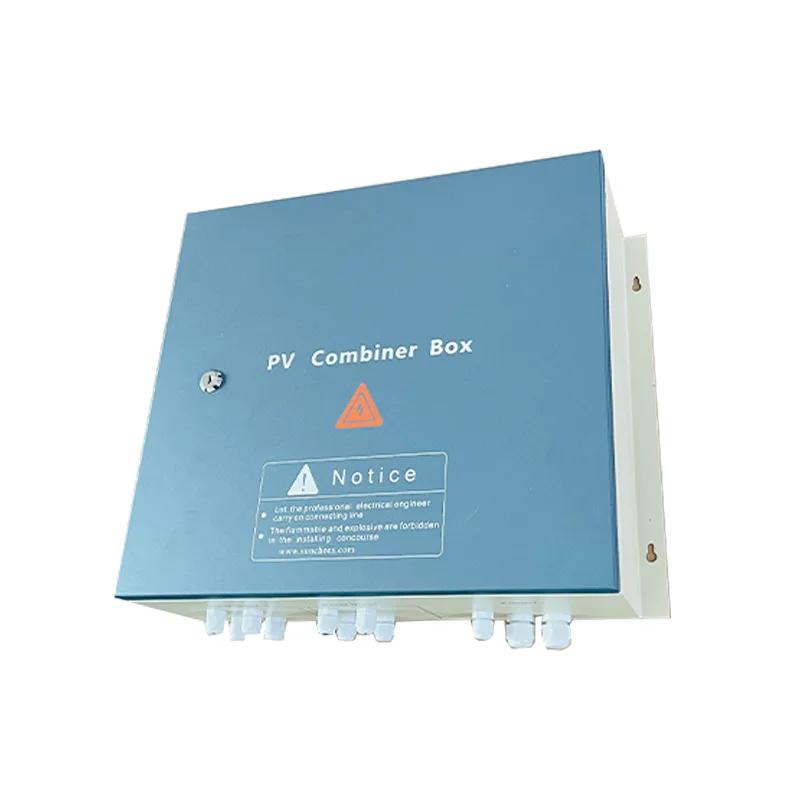

PV Combiner
PV String Combiner Box For Off Grid Solar System
Quote on request
PV - Output numbers1
PV - Max output current40A
PV - Reference weight (N.W/G.W)5.3/9.3
PV - Ground wire size≥6mm2
Factory direct PV string combiner box, high safety and high insulation. Effectively manage solar string connection, reduce system failure and extend solar equipment service life.
Overview
A detailed product overview will appear here once the content is published.
Trade Terms
Ordering & Shipping
Final lead time, shipping route, and freight cost are confirmed according to order quantity and destination.
Read Shipping PolicySpecifications
PV
| PV array input numbers | 4 |
| Max single PV array current | 10A |
| Single PV array fuse | 10A |
| Output numbers | 1 |
| Max output current | 40A |
| Reference weight (N.W/G.W) | 5.3/9.3 |
| Machine size (D X W X H) | 340*300*140mm |
| Packaging size (D X W X H) | 450*420*245mm |
| Ground wire size | ≥6mm2 |
