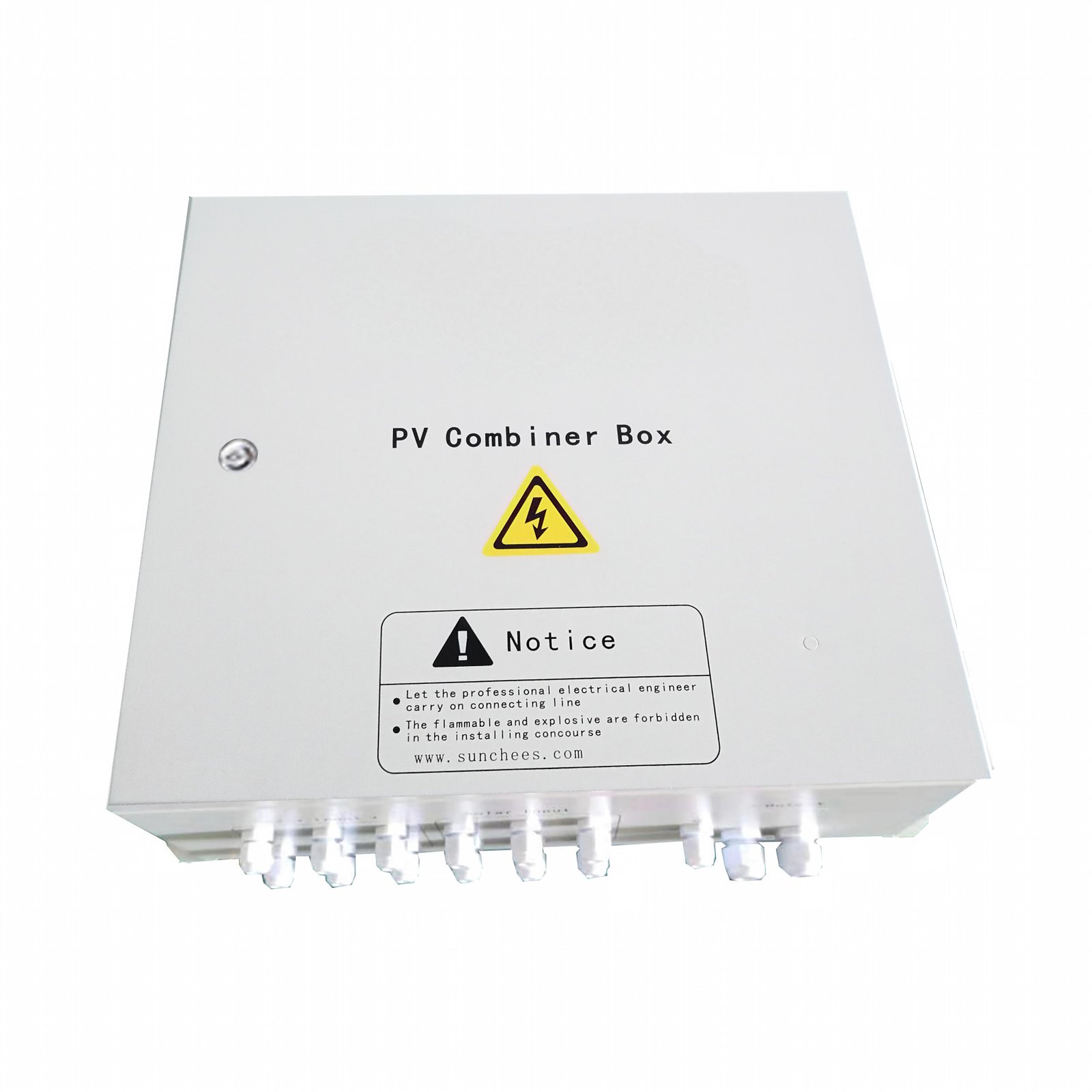

PC10-240V PV Combiner Box
PC10-240V PV combiner box for the 30kW system package.
Quote on request
PV Combiner - ModelPC10-240 V
PC10-240V PV Combiner Box for organised PV-array combining in residential and commercial solar installations.
Application Scenarios
This product is linked to 2 application scenarios so buyers can move from use case to matching products without losing context.
Solar Backup for Shops, Clinics & Small Businesses
Design solar and battery backup around the equipment that protects revenue, stock, customer service and security. We size from your actual business hours, bills, outage pattern and equipment—not from a generic “small business” package.
Solar Products for Distributors & Installers
Plan a sellable product mix around the homes, shops, farms, hospitality sites and commercial projects in your market—not a container of disconnected components. We help match inverters, batteries, panels and balance-of-system products for quotation and stocking.
Overview
Bring multiple solar strings into one cleaner system connection
A PV combiner helps installers organise incoming solar strings before they reach the inverter or charge controller. It is useful for larger arrays where projects need clearer wiring, easier maintenance and a coordinated protection design.
Where this model fits
- Home and commercial PV arrays with multiple strings
- Off-grid solar packages that require a separate combiner
- New installations, system upgrades and replacement projects
Why include a combiner box
- PC10-240 V model for the matching system voltage and project design
- Organised PV string combining
- Simplifies the connection between the array and downstream equipment
- Creates one defined location for the project-specified DC protection and isolation
What must be confirmed
Send the number of PV strings, module Voc and current, series-module quantity, inverter or controller model and required enclosure or protection details. Input count and protective devices must be confirmed for the exact project rather than inferred from the model name.
Trade Terms
Ordering & Shipping
Final lead time, shipping route, and freight cost are confirmed according to order quantity and destination.
Read Shipping PolicySpecifications
PV Combiner
| Model | PC10-240 V |
Downloads
Download files will appear here once they are added.
FAQ
What is the PC10-240V PV Combiner Box used for?
It is used to bring multiple PV strings together before the inverter or charge controller, helping create a cleaner and more serviceable array connection.
How do I know whether this combiner matches my solar array?
The installer must confirm string count, temperature-corrected maximum voltage, current per string, output current and required protection.
Are all fuses, breakers and surge protectors included?
The exact protection package must be confirmed in the quotation for the selected model and project requirements.
