100kW Solar System for Off Grid
100kW three phase solar power system villa, farm, factory, hotel or backup power use.
Quote on request
50kW Solar System for Off Grid
50kW three phase solar power system villa, farm, factory, hotel or backup power use.
Quote on request
Solar Panel - Max Power600 W
Solar Panel - Quantity80 pcs
Solar Panel - Solar CellMonocrystalline
Solar Panel - Vmp43.18 V
Complete off-grid solar system package with inverter, panels, battery bank, combiner box, and installation accessories.
Included Components
Review full configuration
This configured system includes 6 component lines built around 85 total units of linked core products.
Included Components
Review the full configured bill of materials below. Each component links to its own detailed product page for specification review and procurement follow-up.
Application Scenarios
This product is linked to 5 application scenarios so buyers can move from use case to matching products without losing context.
Solar Dealer Inventory
For African distributors and installers who need quote-ready solar systems, inverters, batteries, panels, combiner boxes, mounting racks, and cables for repeat residential and light commercial orders.
Solar System For Farm & Lodge
For African farms, lodges, camps, water-pump sites, small clinics, and rural facilities where weak grids or long diesel supply chains make solar storage a practical operating system.
Solar System For Guesthouse & Hotel
For African guesthouses, lodges, small hotels, and resorts that need quieter backup power for rooms, lighting, reception, water pumps, WiFi, refrigerators, and essential air-conditioning loads.
Solar System For Office & Business
For African offices, studios, retail stores, and service businesses that need reliable backup for computers, routers, lighting, security systems, payment terminals, and other critical loads.
Commercial Backup Power
For African businesses that need stable power for lights, POS systems, computers, cold rooms, routers, pumps, and security equipment when grid power is expensive or unstable.
Overview
Complete off-grid solar system package with inverter, panels, battery bank, combiner box, and installation accessories.

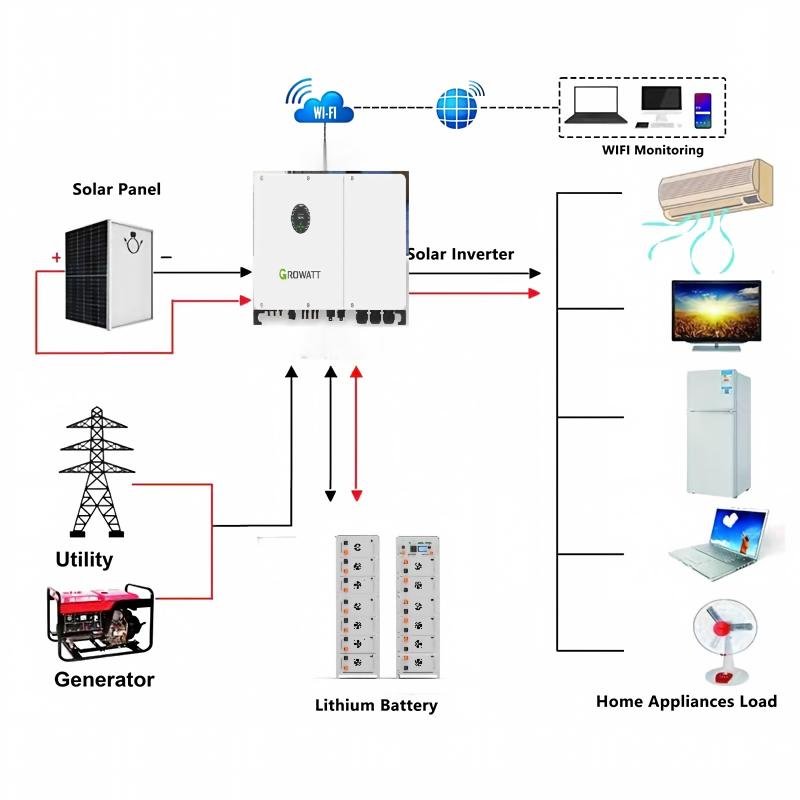

The system record links its inverter, solar panels, LiFePO4 battery bank, mounting rack, solar cable, and other listed components with the quantities supplied in the product workbook.
Specifications

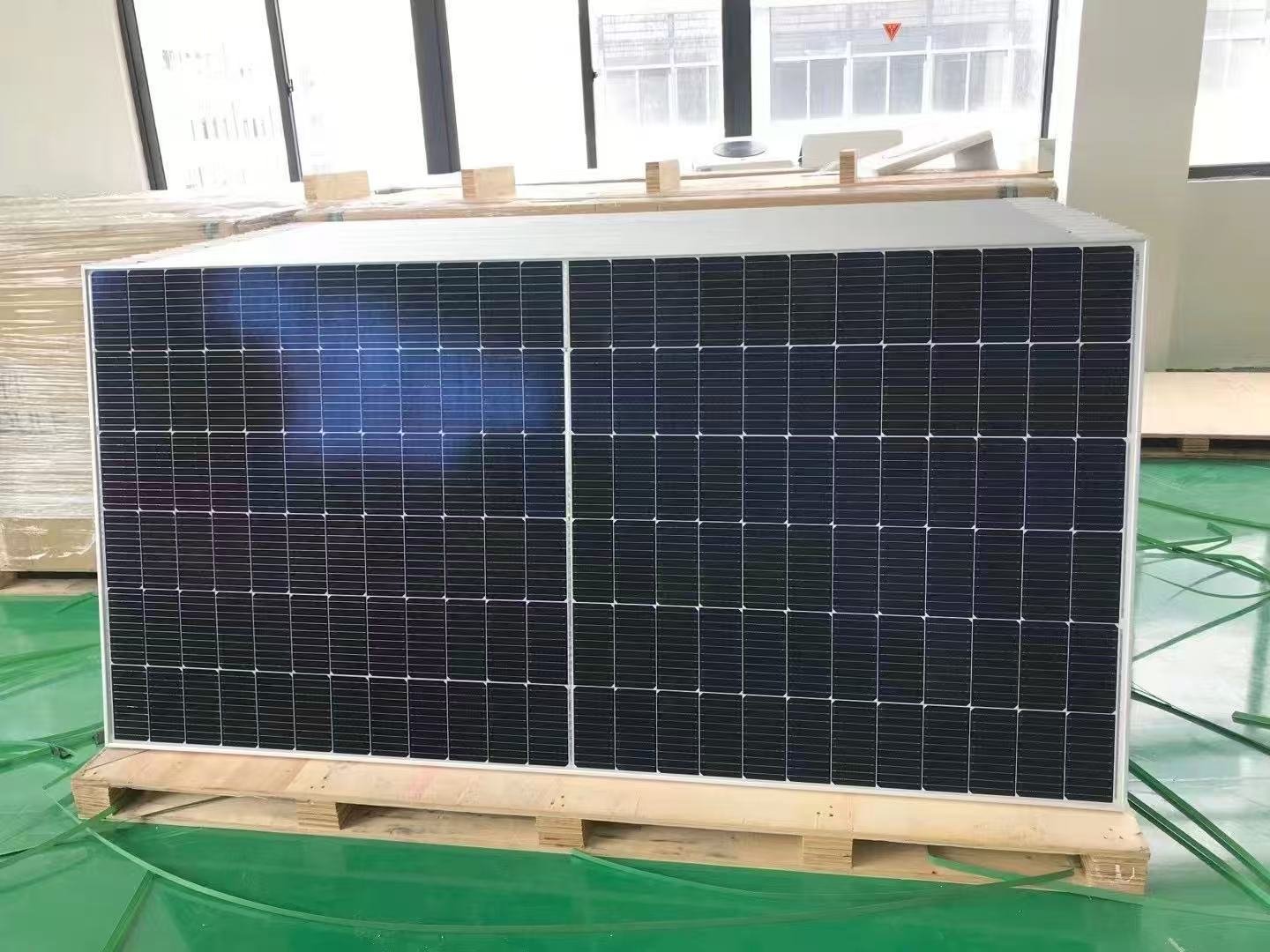

Solar Panel
| Max Power | 600 W |
| Quantity | 80 pcs |
| Solar Cell | Monocrystalline |
| Vmp | 43.18 V |
| Voc | 51.41 V |
| Imp | 15.3 A |
| Product Dimension | 2279*1134*30 mm |
| Warranty | 25 Years |

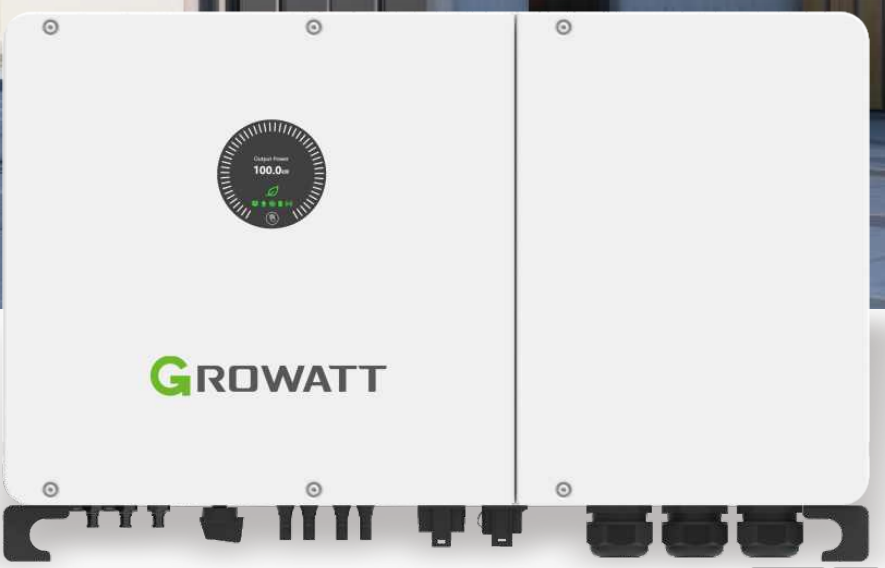

Solar Inverter
| Rated Power | 50 kW |
| Max PV Input | 100 kW |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 380 VAC |
| MPPT Voltage Range | 310V-800V VDC |
| Charging Efficiency | 99 % |
| Product Size | 929*585*320 mm |
| Certification | CE ROSH IEC |
| Brand | Growatt |
Battery
| Battery Type | LiFePO4 |
| Rated Voltage | 512 V |
| Capacity | 314 Ah |
| Energy | 160 kWh |
| Cycle Life | ≥6000 cycles |
| Size | 500*470*180 mm |

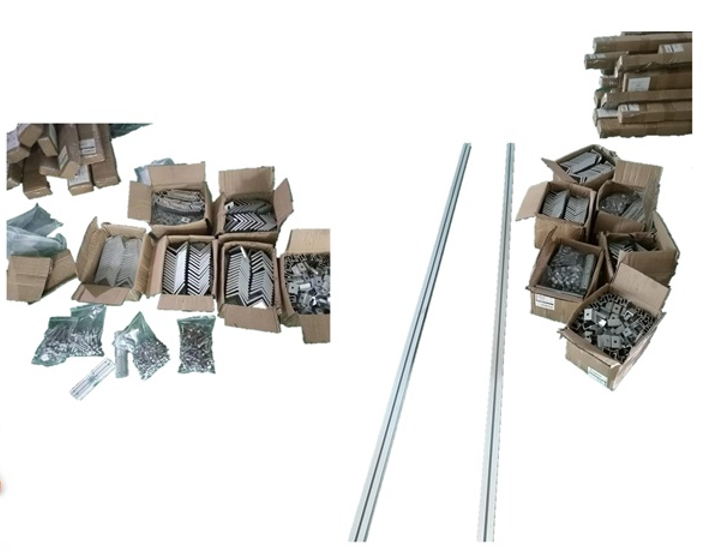

Solar Rack
| Type | Slope Rooftop or Flat rooftop set |

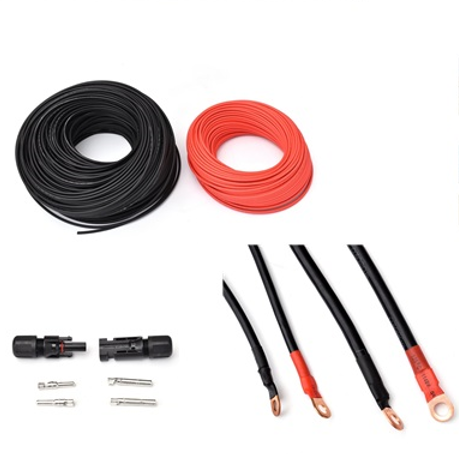

Solar Cable
| Size | 6mm2 set |
PV Combiner
| Model | PC10-360 V |
