A complete off-grid solar package for hotels, farms, schools, workshops, clinics and commercial facilities, combining 100kW inverter capacity, 96kWp of solar panels, 241 kWh of battery storage, 380 VAC output to keep priority loads running when grid power is unavailable or unreliable.
Wholesale pricing is available for bulk orders and distributors.
Final lead time, shipping route, and freight cost are confirmed according to order quantity and destination.
Read Shipping PolicyThis configured system includes 5 component lines built around 164 total units of linked core products.
| Max Power | 600 W |
| Quantity | 160 pcs |
| Solar Cell | Monocrystalline |
| Vmp | 43.18 V |
| Voc | 51.41 V |
| Imp | 15.3 A |
| Product Dimension | 2279*1134*30 mm |
| Warranty | 25 Years |
| Rated Power | 100 kW |
| Max PV Input | 120 kW |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 380 VAC |
| MPPT Voltage Range | 310V-800V VDC |
| Charging Efficiency | 99 % |
| Product Size | 929*585*320 mm |
| Certification | CE ROSH IEC |
| Battery Type | LiFePO4 |
| Rated Voltage | 768 V |
| Capacity | 300 Ah |
| Energy | 241 kWh |
| Cycle Life | ≥6000 cycles |
| Size | 1350*1010*1780 mm |
| Type | Slope Rooftop or Flat rooftop set |
| Model | 140A pcs |
| Size | 6mm2 set |
Review the components and quantities included in this complete solar system.

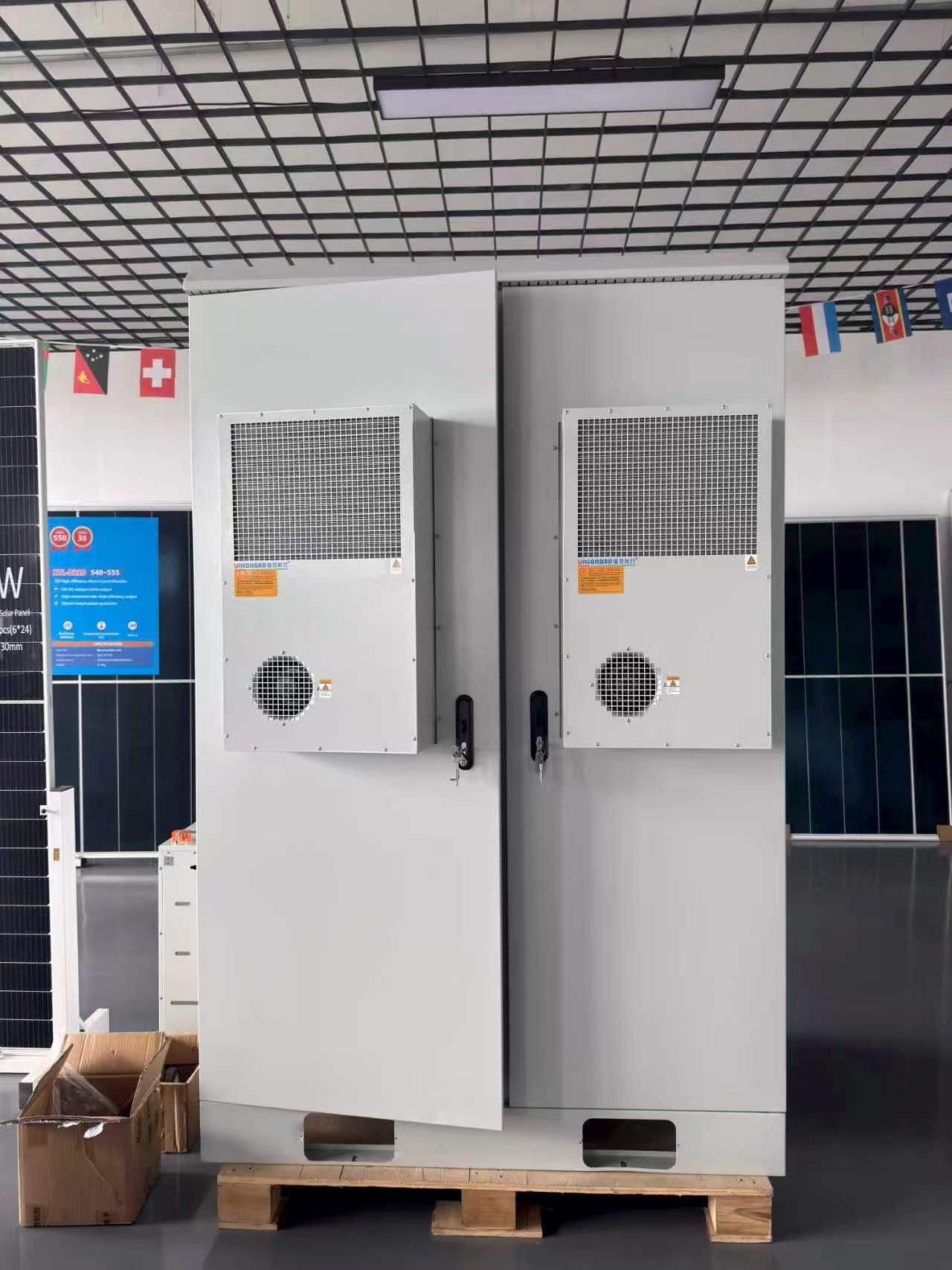

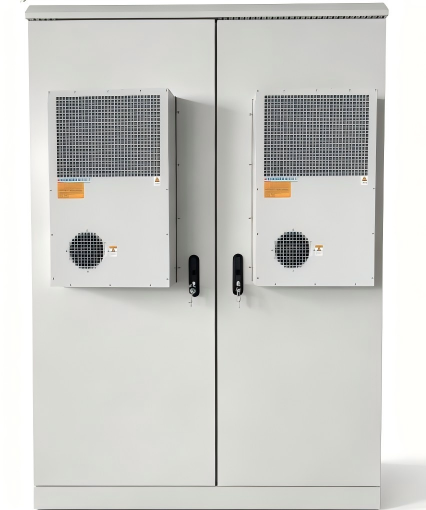

| Included quantity | 1 unit |
|---|---|
| Rated Power | 100 kW |
| Max PV Input | 120 kW |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 380 VAC |
| MPPT Voltage Range | 310V-800V VDC |
| Charging Efficiency | 99 % |
| Product Size | 929*585*320 mm |
| Certification | CE ROSH IEC |

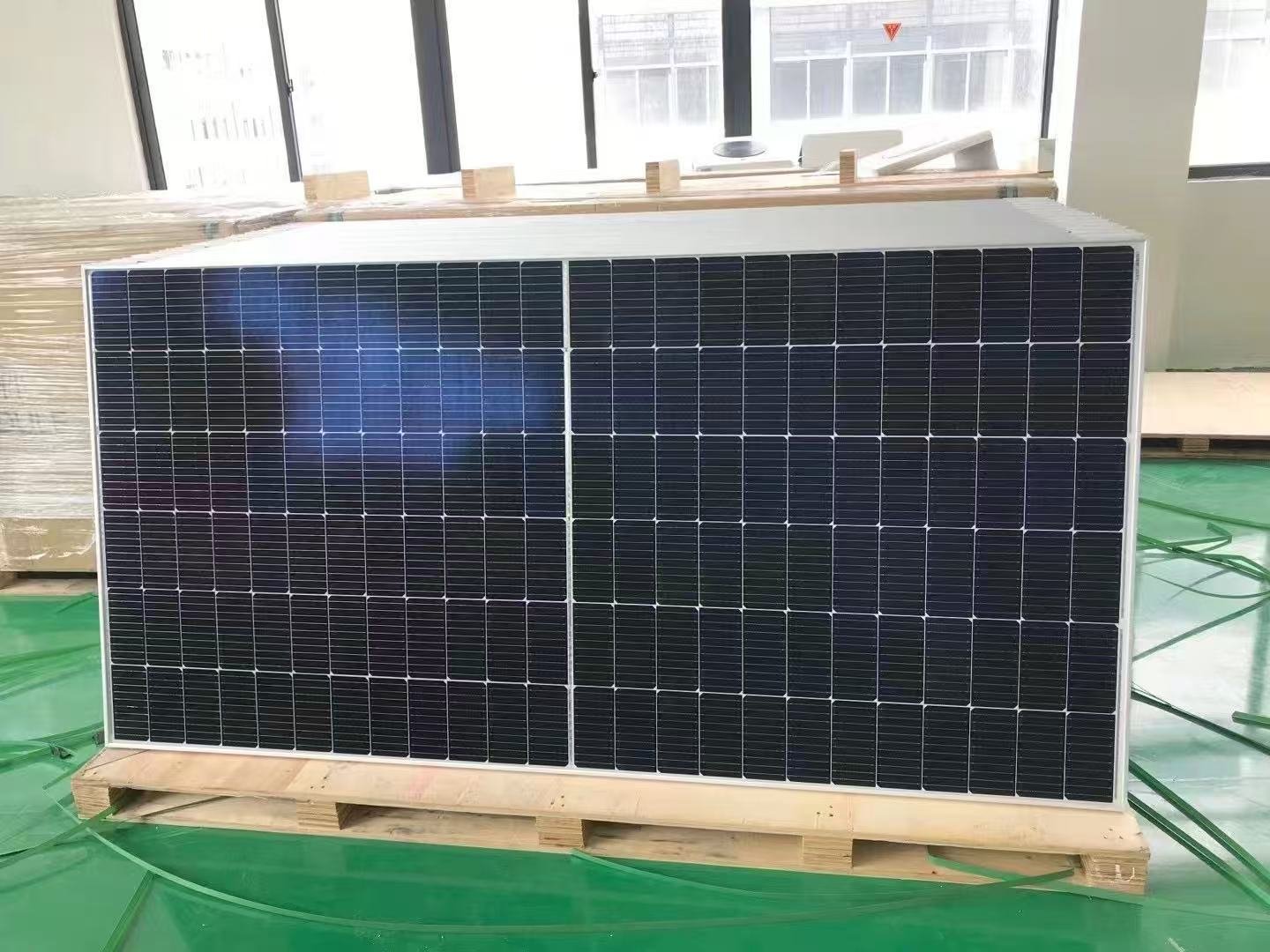

| Included quantity | 160 pcs |
|---|---|
| Model | 600W |
| Max Power | 600 W |
| Solar Cell | Monocrystalline |
| Vmp | 43.18 V |
| Voc | 51.41 V |
| Imp | 15.3 A |
| Product Dimension | 2279*1134*30 mm |
| Warranty | 25 Years |
| Busbars | 5 |
| Junction Box Protection | IP65 |
| Connector | MC4 |
| Included quantity | 1 set |
|---|---|
| Model | 768V 300Ah LiFePO4 |
| Battery Type | LiFePO4 |
| Rated Voltage | 768 V |
| Capacity | 300 Ah |
| Energy | To confirm for this system |
| Cycle Life | ≥6000 cycles |
| Size | 1350*1010*1780 mm |

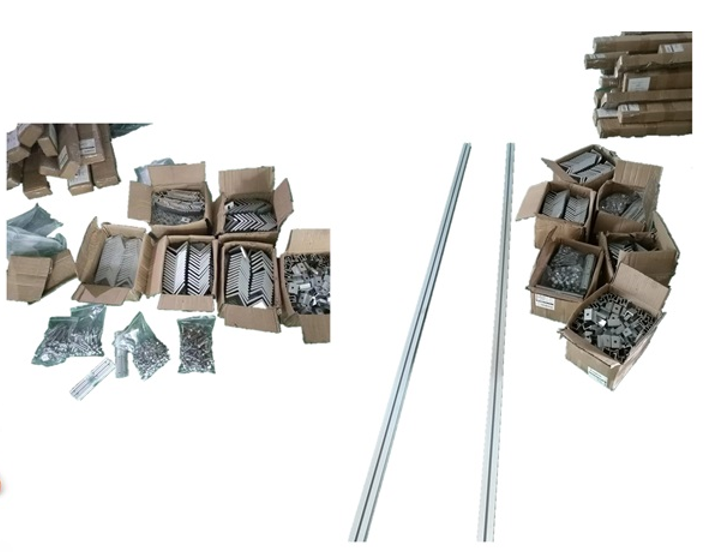

| Included quantity | 1 set |
|---|---|
| Model | Rooftop mounting rack |
| Application | Slope rooftop or flat rooftop |
| Unit | Set |

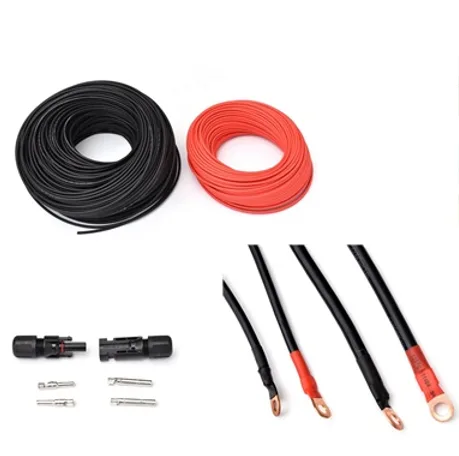

| Included quantity | 1 set |
|---|---|
| Model | 6mm2 solar cable |
| Cable Size | 6 mm2 |
| Unit | Set |
100kW Solar System for Off Grid combines solar generation, battery storage and the main system components in one coordinated package. It can keep essential equipment available through outages and reduce routine dependence on diesel generators.
A commercial site can separate priority circuits from optional heavy loads, keeping essential operations running while reducing generator dependence.
Lighting, computers, networking, payment and security systems; Commercial refrigeration, water supply and selected cooling circuits
Choose the system around the equipment you want to keep running at the same time during an outage.
Pumps, workshop equipment and larger three-phase loads after starting and phase-balance checks
These loads can be included after we check their running power, starting power and normal operating schedule.
Electric boilers and heaters, large chillers, welders or heavy production machinery
If you want to run these loads together, tell us before quotation so the inverter, battery and solar array can be sized for them.
Send us the appliance and motor nameplates with your load list. We will check how much equipment can run together and allow for motor or compressor starting power.
Consider a 40-room mid-range hotel using about 15,000kWh per month. During an outage, its priority circuit could include reception, WiFi, CCTV and common-area lighting, commercial refrigeration, water pumping, room lights and fans, plus eighteen occupied-room air conditioners, averaging about 22kW while those loads are in use. For this example, we allow 20% for battery reserve and typical system losses, leaving 80% of the 241 kWh nameplate energy available for comparison: 241 kWh × 80% = 192.8kWh; 192.8kWh ÷ 22kW ≈ 8.8 hours. Your actual backup time will depend on the equipment running, battery settings, temperature and installation conditions. Send us your electricity bill or load list and we will calculate the system around your property.
Why we also ask for your load list: Your monthly kWh shows overall energy use, while backup time depends on which appliances you want to keep running together.
Send the site voltage and phase, appliance or equipment list, daily operating hours, motor starting information and required backup time. We will confirm whether this package fits or recommend a more suitable configuration.
The system can be sized for essential shop or clinic circuits, such as lighting, refrigeration and point-of-sale equipment.
Solar generation and battery storage can support priority loads at remote sites. Size the system for pump starting loads and refrigeration hours.
Battery backup can keep priority guest services running, such as reception, Wi-Fi and lighting. Size larger loads separately.
Battery backup can support the equipment that keeps work moving, such as computers, network equipment and payment terminals.
The panels, inverter and battery are supplied as a complete package, so installers can assess the configuration together before ordering.
Download files will appear here once they are added.
It can be configured for lighting, computers, networking, payment and security systems; commercial refrigeration, water supply and selected cooling circuits; pumps, workshop equipment and larger three-phase loads after starting and phase-balance checks. Final appliance quantity depends on simultaneous load and motor starting requirements.
For example, a 40-room mid-range hotel using about 15,000kWh per month, with reception, WiFi, CCTV and common-area lighting, commercial refrigeration, water pumping, room lights and fans, plus eighteen occupied-room air conditioners, could average about 22kW on its priority circuit during an outage. After allowing 20% for reserve and typical system losses, the 241 kWh nameplate battery provides about 192.8kWh for this preliminary comparison—approximately 8.8 hours at the example load. Actual backup time depends on the connected equipment, battery settings and site conditions. Send us your electricity bill or load list for a system recommendation based on your property.
Please provide the site voltage and phase, load list, running hours, pump or compressor starting data, target backup time and available panel installation area.
